Brand Name : TEKO
Model Number : Q41F-10L
Certification : CE/PED, API
Place of Origin : Made in China
MOQ : 1 piece
Price : By negotiation
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 350 tons per year
Delivery Time : 25 working days after deposit
Packaging Details : By export wooden cases
Pressure Rating : JIS 10K,20K
Mouting Pad : ISO 5211
Features : Floating Ball
Port Size : 2"-12"
Seat Material : PTFE
Body Material : WCB, SCS13
BS5351 Full Bore PTFE Seated Ball Valve With ISO5211 Mounting Pad
Features
Drawing & Dimensions

| NO. | Part Name | Material | ||
| 1 | Body | A216 WCB | SCS13 | SCS14 |
| 2 | Nuts | A194 2H | A194-8 | A194-8 |
| 3 | Bolts | A193 2B | A193-B8 | A193-B8 |
| 4 | Gasket | PTFE | PTFE | PTFE |
| 5 | Thrust Washer | PTFE | PTFE | PTFE |
| 6 | Packing | PTFE | PTFE | PTFE |
| 7 | Stem | A182-F305 | 304SS | 316SS |
| 8 | Lock piece | A36 | 304SS | 316SS |
| 9 | Gland Bush | A216-WCB | SCS13 | SCS14 |
| 10 | Ball | A182-F304 | 304SS | 316SS |
| 11 | Seat | PTFE | PTFE | PTFE |
| 12 | Cover | A216 WCB | SCS13 | SCS14 |
| 13 | Lever | WCB | WCB | WCB |

|
|

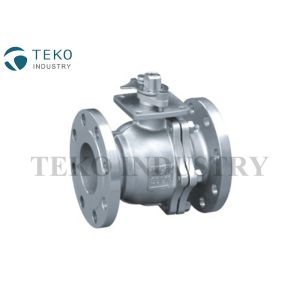

Full Bore PTFE Seated JIS Valve , BS 5351 Ball Valve With ISO5211 Mounting Pad Images |
