Straight Type Four Way JIS Valve Low Flow Pressure Drop Silent Operation For WOG

Name: Straight Type Four Way JIS Valve Low Flow Pressure Drop Silent Operation For WOG
Brand: TEKO
Price: 1 USD

Brand Name : TEKO

Model Number : Q47F

Certification : CE/PED, API

Place of Origin : Made in China

MOQ : 1 piece

Price : By negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 350 tons per year

Delivery Time : 25 working days after deposit

Packaging Details : By export wooden cases

End Connection : Flange

Body Material : WCB, SCS13, SCS14

Structure : Four Way Ball

Port Size : DN15 to DN300

Pressure Rating : JIS 10K

Operationg : Manual, Electric, Pneumatic

Contact Now

Straight Type Stainless Steel Flanged End Four Way JIS Ball Valve For WOG

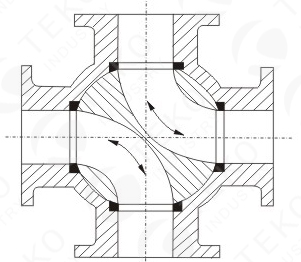

Working Principle

With the structure of flange connection, the valve has such advantages as silent operation, low flow pressure drop, quick direction changing. The TEKO Four way ball valve is designed with four seal ring, which offers reliable bubble tight seal during directional process. The truly virgin PTFE seal ring has a good and stable performance and reduces the maintenance fee for end user.

Use and specifications

The Four Way Ball Valve is applied in the pipes with media such as water, steam, and oil with working temperature less than or equal to 150 ℃, used to change the flow direction and connect or cut off the media in pipes.

Straight Type Four Way JIS Valve Low Flow Pressure Drop Silent Operation For WOG

Technical Data:

Size rating:	1/2”~12”
Working Pressure:	10K
Design Standard:	API 608
Flange Drilling:	JIS B2002
Test Standard:	IS B 2003

Dimensions:

DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	150	160	180	200	220	240	260	280	320	380	440	550	670	720
D	95	100	125	135	140	155	175	185	210	250	280	330	400	445
D1	70	75	90	100	105	120	140	150	175	210	240	290	355	400
Z-￠d	4*15	4*15	4*19	4*19	4*19	4*19	4*19	8*19	8*19	8*23	8*23	12*23	12*25	16*25
