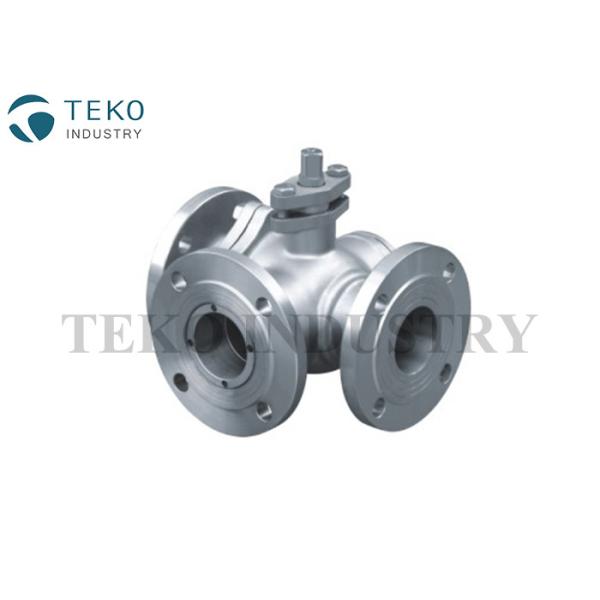

Three Way JIS Ball Valve L Port T Port Soft Seated For Oil / Gas Applications

Name: Three Way JIS Ball Valve L Port T Port Soft Seated For Oil Gas Applications
Brand: TEKO
Price: 1 USD

Brand Name : TEKO

Model Number : Q44F-10K, Q45F-10K

Certification : CE/PED, API

Place of Origin : Made in China

MOQ : 1 piece

Price : By negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 350 tons per year

Delivery Time : 25 working days after deposit

Packaging Details : By export wooden cases

Pressure Rating : JIS 10K,20K

Port : L port, T Port

Operation : Handle, Pneumatic, Electric

Port Size : DN15-DN300

Seat Material : PTFE

Body Material : WCB, SCS13, SCS 14

Contact Now

Three Way L Port T Port Soft Seated JIS Ball Valve For Oil & Gas Applications

Technical Data:

Size rating:	1/2”~12”
Working Pressure:	10K
Design Standard:	API 608
Flange Drilling:	JIS B2002
Test Standard:	IS B 2003

Use and specifications

T Port L Port Three Way Ball Valve is applied in the pipes with media such as water, steam, and oil with working temperature less than or equal to 150 ℃, used to change the flow direction and connect or cut off the media in pipes.

Dimensions:

Three Way JIS Ball Valve L Port T Port Soft Seated For Oil / Gas Applications

DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	150	160	180	200	220	240	260	280	320	380	440	550	670	720
D	95	100	125	135	140	155	175	185	210	250	280	330	400	445
D1	70	75	90	100	105	120	140	150	175	210	240	290	355	400
Z-￠d	4*15	4*15	4*19	4*19	4*19	4*19	4*19	8*19	8*19	8*23	8*23	12*23	12*25	16*25
