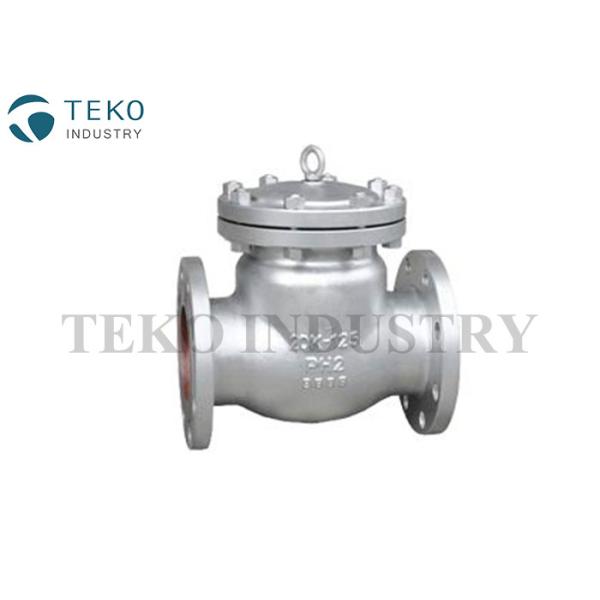

Flanged End Swing Type JIS Valve , Bolted Cover JIS Swing Check Valve With 13Cr Stellite 6

Brand Name : TEKO

Model Number : H44H

Certification : CE/PED, API

Place of Origin : Made in China

MOQ : 1 piece

Price : By negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 350 tons per year

Delivery Time : 25 working days after deposit

Packaging Details : By export wooden cases

Structure : Swing

Deisign : JIS B2074

Seat Material : Hardface

Body Material : Carbon Steel, SCS13, SCS14

End Connection : Flange

Face to face : JIS B2002

Contact Now

Flanged End Swing Type Bolted Cover JIS Swing Check Valve With 13Cr Stellite 6

Technical Data:

1) Size rating: 1/2”~4”
2) Working Pressure:20K
3) Design Standard: JIS B2084
4) Face to Face Standard: JIS B2002
5) Flange Drilling: JIS B2214
6) Test Standard:JIS B 2003

High lights

Horizontal or vertical installation

All sizes rated for full vacuum service

Minimum back pressure to seat disc tightly

Top access cover facilitates maintenance without body removal from pipeline

Low pressure drop

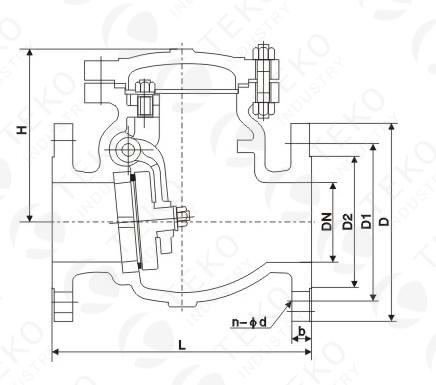

Material List & Dimensions

Flanged End Swing Type JIS Valve , Bolted Cover JIS Swing Check Valve With 13Cr Stellite 6

ITEM PARTS NAME CARBON STEEL
1 Body A216-WCB
2 Bonnet A216-WCB
3 Disc A216-WCB
4 Disc Nut SS304
5 Body/Cover Bolting ASTM A192 B7 / A194 2H
6 Arm / Hinge A216-WCB
7 Body / Bonnet Gasket PTFE
8 Hinge Pin SS304

JIS 10K Dimensions

L Flange 10K H
D D1 D2 b Z-￠d
203 155 120 100 16 4*19 103
216 175 140 120 18 4*19 113
241 185 150 130 18 8*19 128
292 210 175 155 18 8*19 147
330 250 210 185 20 8*23 220
356 280 240 215 22 8*23 244
495 330 290 265 22 12*23 287
622 400 355 325 24 12*23 348
698 445 400 370 24 16*25 380

JIS 20K Dimensions

DN L Flange 20K H
D D1 D2 b Z-￠d
15 108 96 70 51 14 4*15 54
20 117 100 75 56 14 4*15 59
25 127 125 90 67 14 4*19 65
32 140 135 100 80 16 4*19 75
40 165 140 105 81 16 4*19 83
50 203 155 120 96 16 4*19 96
65 216 175 140 116 18 4*19 110
80 241 185 150 135 18 8*19 125
100 292 210 175 151 18 8*19 145

Product Tags:

jis ball valve



jis gate valve
