Carbon Steel Swing Type JIS Valve Face to Face Standard WCB Material For Pumping System

Brand Name : TEKO

Model Number : H44H

Certification : CE/PED, API

Place of Origin : Made in China

MOQ : 1 piece

Price : By negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 350 tons per year

Delivery Time : 25 working days after deposit

Packaging Details : By export wooden cases

Structure : Slient Check

Name : Foot Valve

End Connection : Flange

Test Standard : JIS B2003

Design : JIS B2074/2084

Material : WCB, SCS13

Contact Now

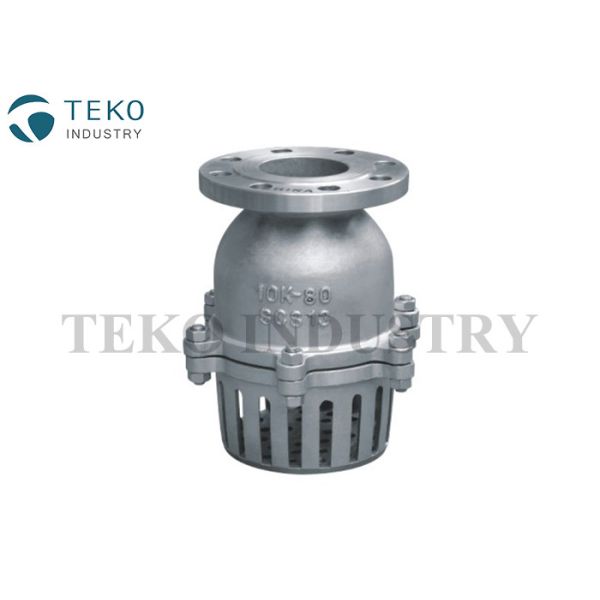

Carbon Steel Flanged EndSwing Type JIS Foot Valve For pumping System

Technical Data:

1) Size rating: 1-1/2”~8”
2) Working Pressure:10K, 20K
3) Design Standard:JIS B2074,B084
4) Face to Face Standard:JIS B2002
5) Flange Drilling:JIS B2214, B2212
6) Test Standard:JIS B 2003

Material List and dimensions for Foot Valve

Carbon Steel Swing Type JIS Valve Face to Face Standard WCB Material For Pumping System

NO. Part Name Material
1 Body WCB SCS13
2 Seat 25+13Cr SCS13
3 Disc 25+13Cr SCS13
4 Screen PTFE PTFE
5 Gasket WCB SCS14

DN 40 50 65 80 100 125 150 200 250 300
D 140 155 175 185 210 250 277 330 398 440
Do 152 168 188 230 258 298 316 380 395 420
H 174 190 225 260 280 334 370 426 370 424
